Standard Aluminum Profile Library
36 standard sections across 8 families, each with a dimensioned drawing, weight per metre and calculated section properties. No die cost — cut, machined and finished to order.
Every profile lists nominal dimensions, cross-sectional area, weight per metre at 2.70 g/cm³ and moments of inertia Ix and Iy, calculated directly from the drawn section — so you can size members for deflection before you ask for a quote.
All standard profiles
20 × 20 T-Slot Profile, 6 mm Slot
- Size
- 20 × 20 mm
- Weight
- 0.488 kg/m
- Alloy
- 6063-T5
30 × 30 T-Slot Profile, 8 mm Slot
- Size
- 30 × 30 mm
- Weight
- 1.003 kg/m
- Alloy
- 6063-T5
40 × 40 T-Slot Profile, 8 mm Slot
- Size
- 40 × 40 mm
- Weight
- 1.608 kg/m
- Alloy
- 6063-T5
40 × 80 T-Slot Profile, 8 mm Slot
- Size
- 40 × 80 mm
- Weight
- 3.112 kg/m
- Alloy
- 6063-T5
45 × 45 T-Slot Profile, 10 mm Slot
- Size
- 45 × 45 mm
- Weight
- 2.004 kg/m
- Alloy
- 6063-T5

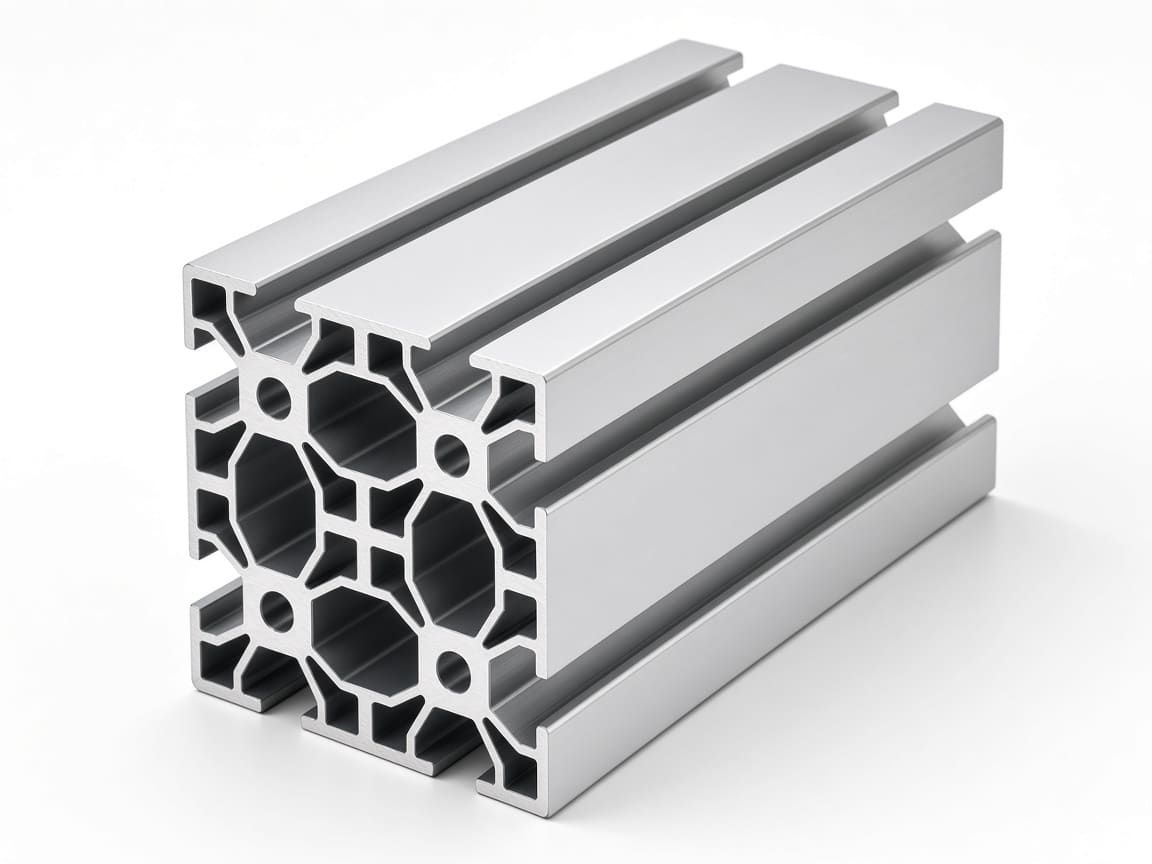

80 × 80 T-Slot Profile, 8 mm Slot
- Size
- 80 × 80 mm
- Weight
- 6.011 kg/m
- Alloy
- 6063-T5
Aluminum Square Tube 20 × 20 × 1.5 mm
- Size
- 20 × 20 × 1.5 mm
- Weight
- 0.298 kg/m
- Alloy
- 6063-T5
Aluminum Square Tube 25 × 25 × 2 mm
- Size
- 25 × 25 × 2 mm
- Weight
- 0.495 kg/m
- Alloy
- 6063-T5
Aluminum Square Tube 30 × 30 × 2 mm
- Size
- 30 × 30 × 2 mm
- Weight
- 0.603 kg/m
- Alloy
- 6063-T5
Aluminum Square Tube 40 × 40 × 2 mm
- Size
- 40 × 40 × 2 mm
- Weight
- 0.819 kg/m
- Alloy
- 6063-T5
Aluminum Square Tube 50 × 50 × 3 mm
- Size
- 50 × 50 × 3 mm
- Weight
- 1.521 kg/m
- Alloy
- 6063-T5
Aluminum Rectangular Tube 40 × 20 × 2 mm
- Size
- 40 × 20 × 2 mm
- Weight
- 0.603 kg/m
- Alloy
- 6063-T5

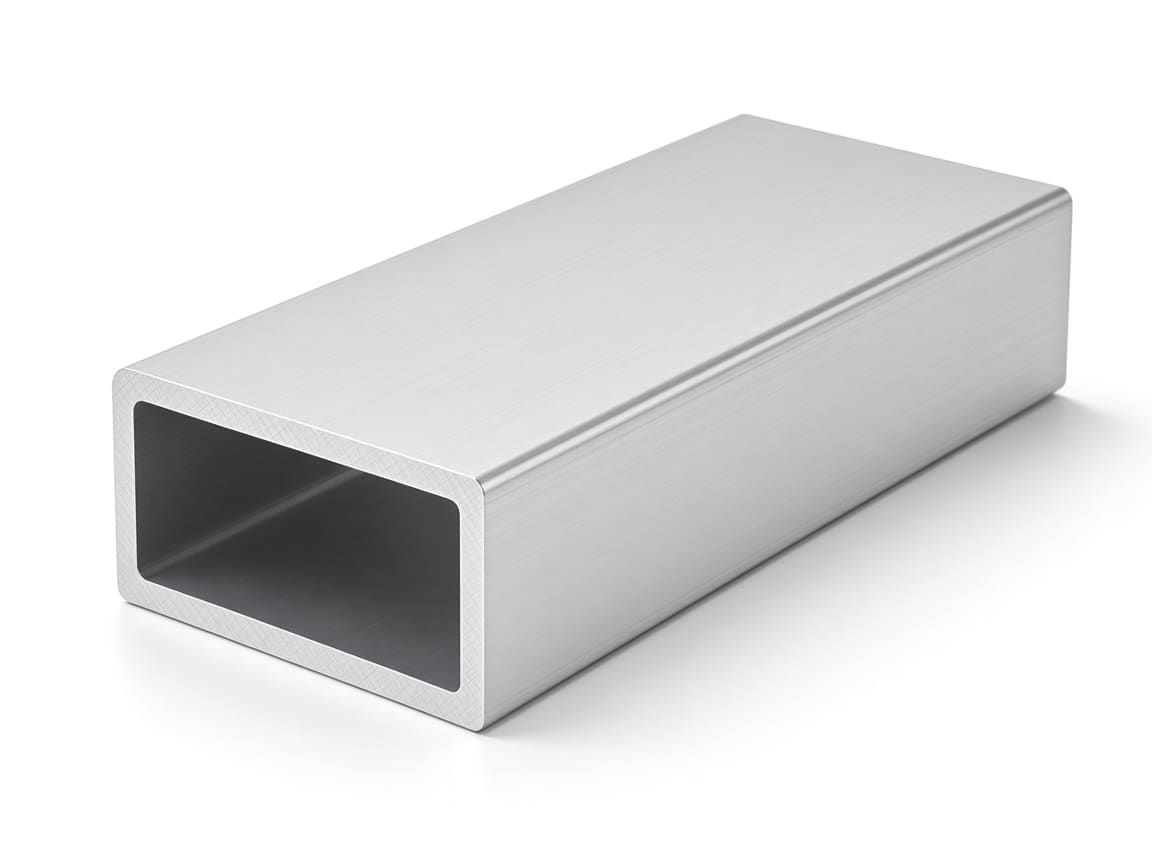

Aluminum Rectangular Tube 50 × 25 × 2 mm
- Size
- 50 × 25 × 2 mm
- Weight
- 0.765 kg/m
- Alloy
- 6063-T5
Aluminum Rectangular Tube 60 × 30 × 2.5 mm
- Size
- 60 × 30 × 2.5 mm
- Weight
- 1.146 kg/m
- Alloy
- 6063-T5

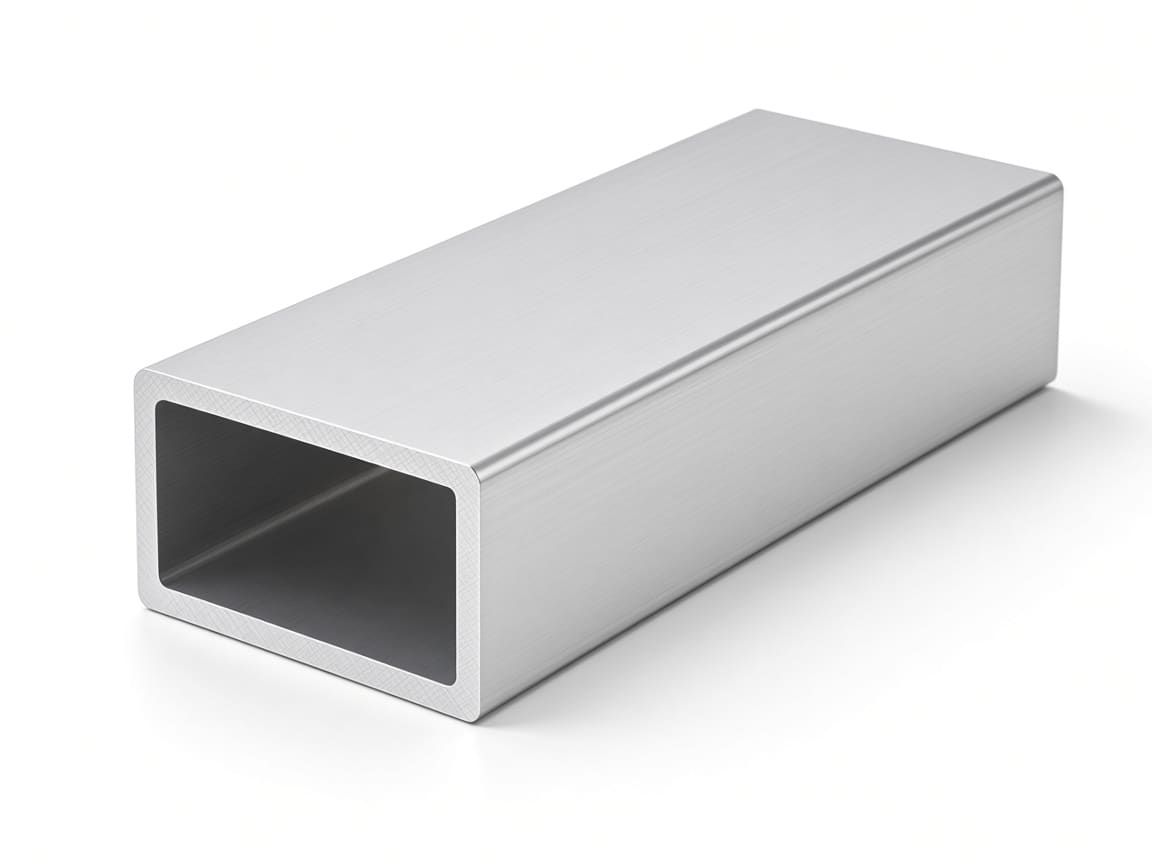

Aluminum Rectangular Tube 80 × 40 × 3 mm
- Size
- 80 × 40 × 3 mm
- Weight
- 1.845 kg/m
- Alloy
- 6063-T5

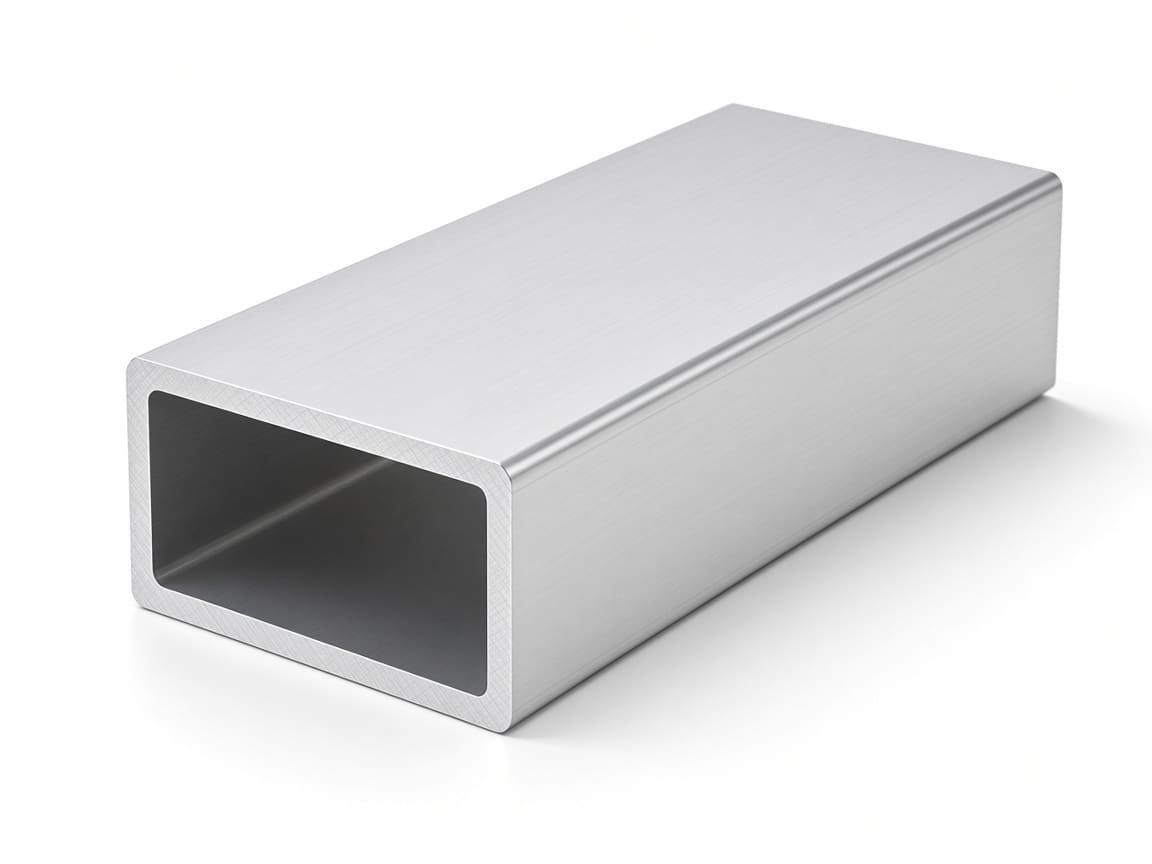

Aluminum Rectangular Tube 100 × 50 × 3 mm
- Size
- 100 × 50 × 3 mm
- Weight
- 2.331 kg/m
- Alloy
- 6063-T5

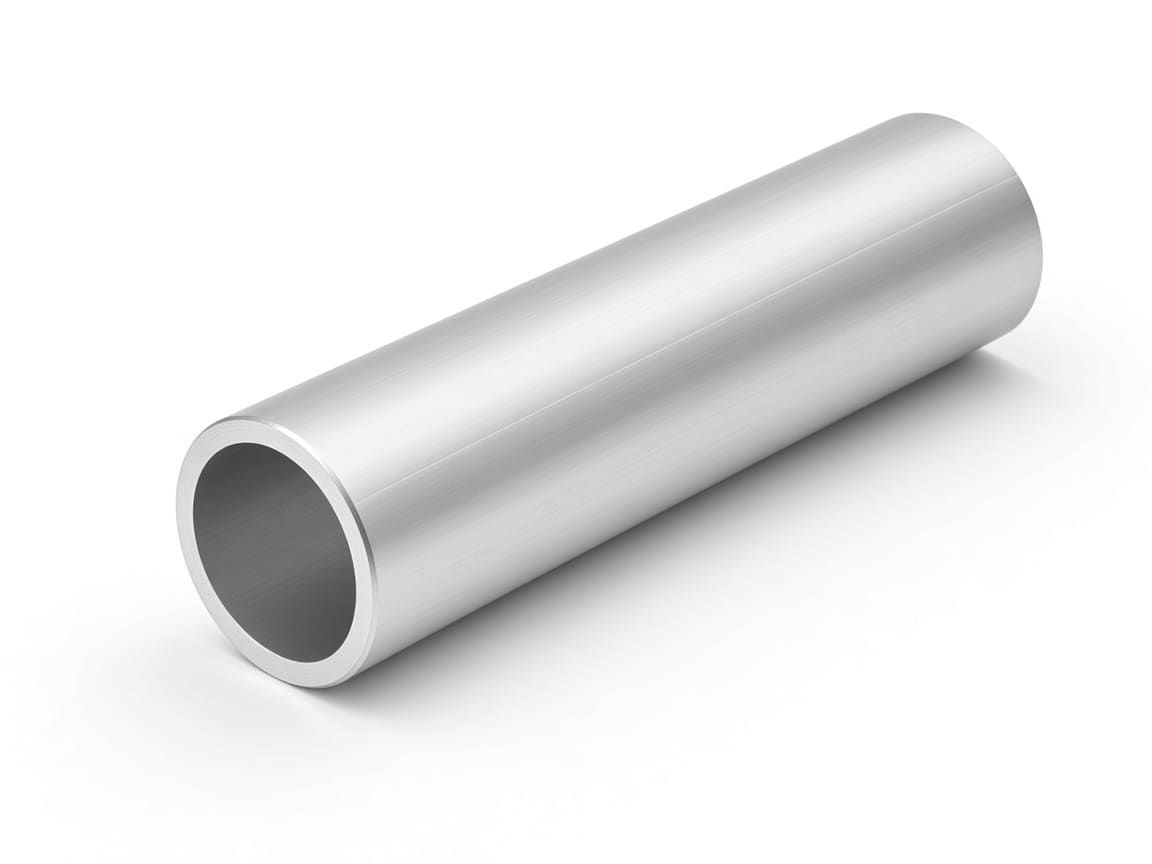

Aluminum Round Tube Ø20 × 2 mm
- Size
- Ø20 × 2 mm
- Weight
- 0.305 kg/m
- Alloy
- 6063-T5

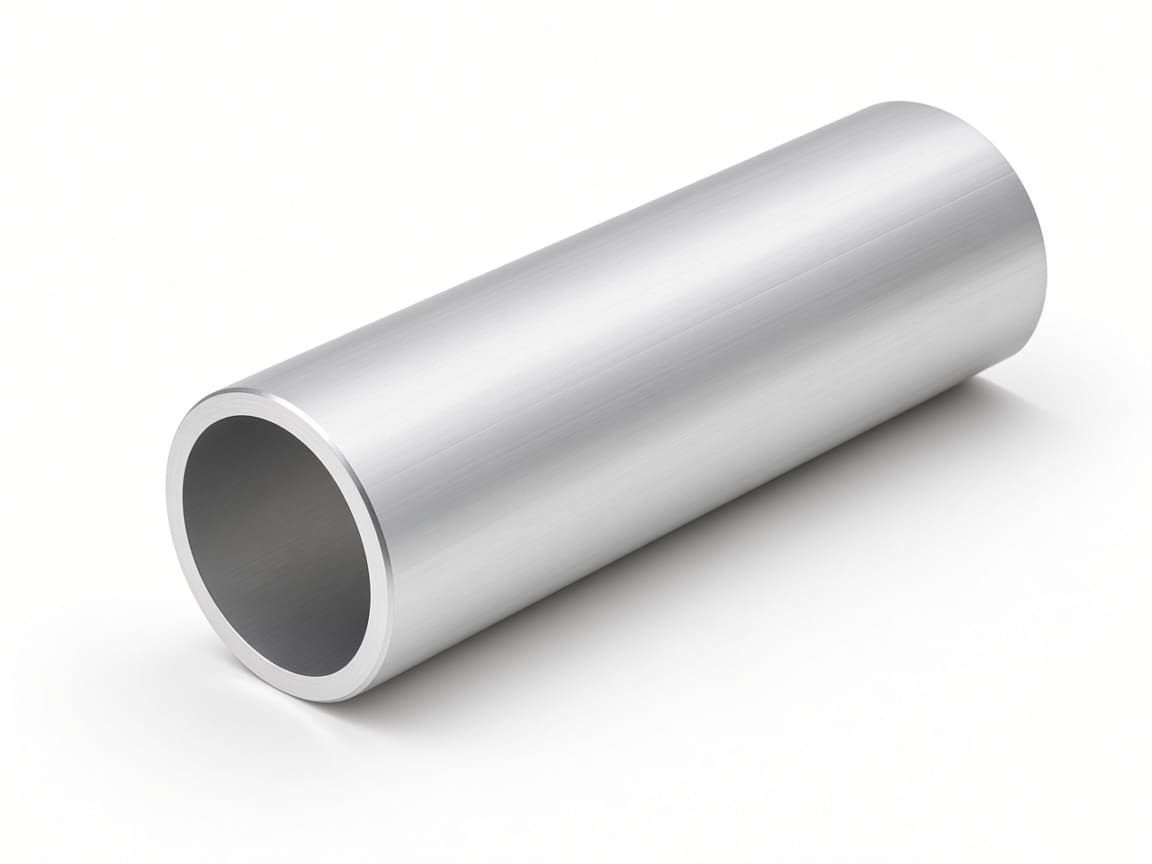

Aluminum Round Tube Ø25 × 2 mm
- Size
- Ø25 × 2 mm
- Weight
- 0.390 kg/m
- Alloy
- 6063-T5

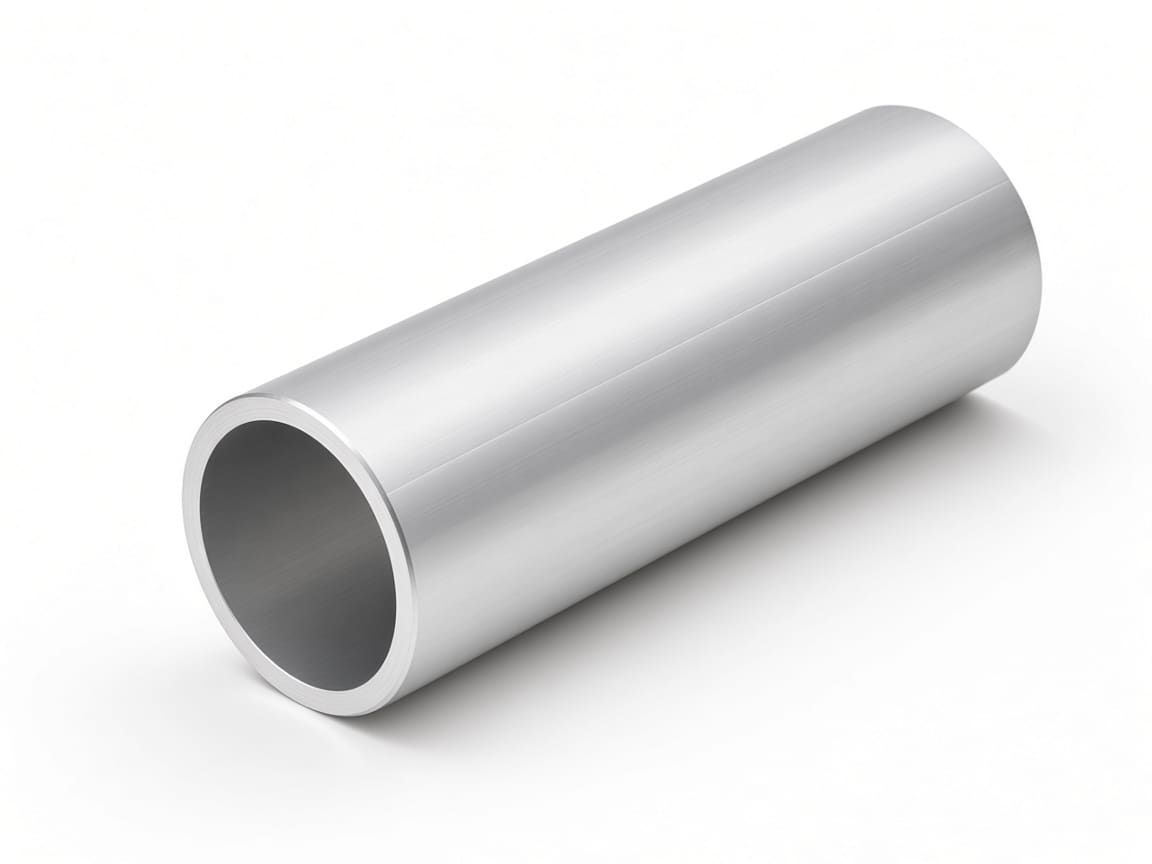

Aluminum Round Tube Ø32 × 2 mm
- Size
- Ø32 × 2 mm
- Weight
- 0.508 kg/m
- Alloy
- 6063-T5
Aluminum Round Tube Ø40 × 3 mm
- Size
- Ø40 × 3 mm
- Weight
- 0.940 kg/m
- Alloy
- 6063-T5

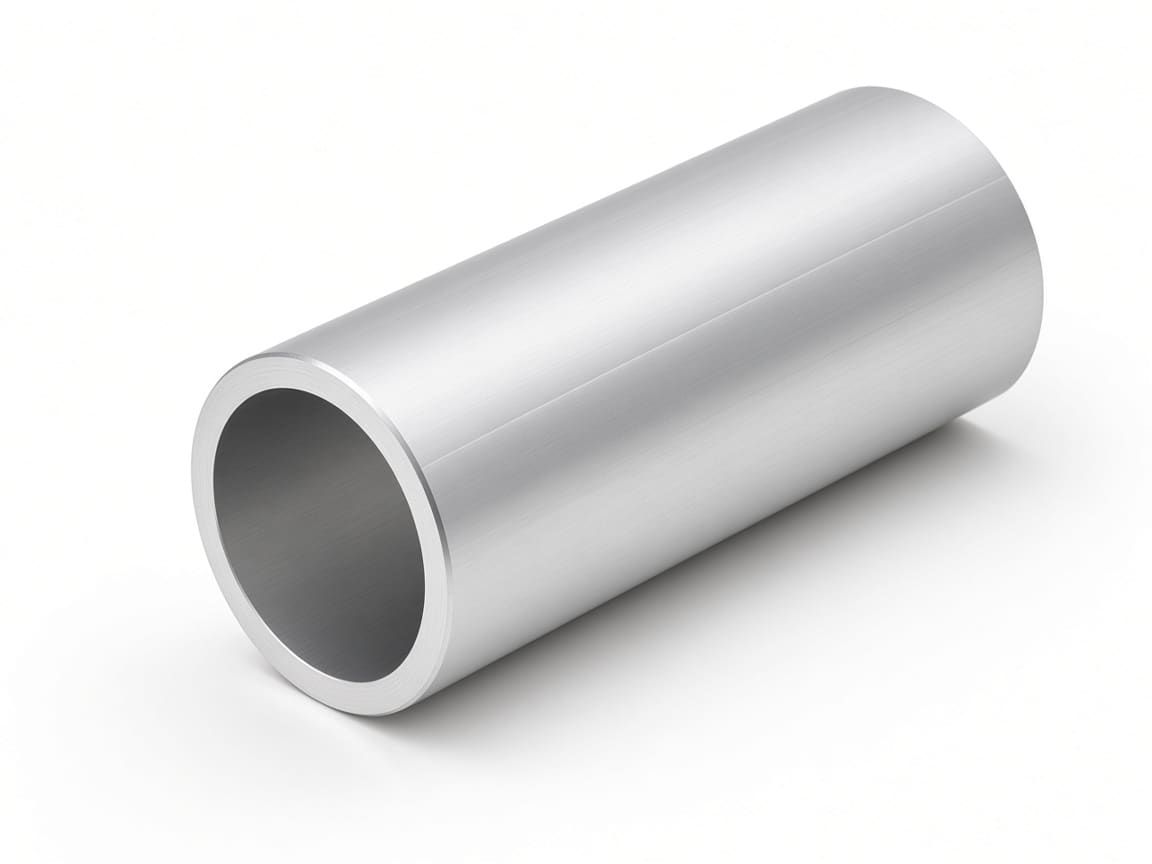

Aluminum Round Tube Ø50 × 3 mm
- Size
- Ø50 × 3 mm
- Weight
- 1.194 kg/m
- Alloy
- 6063-T5

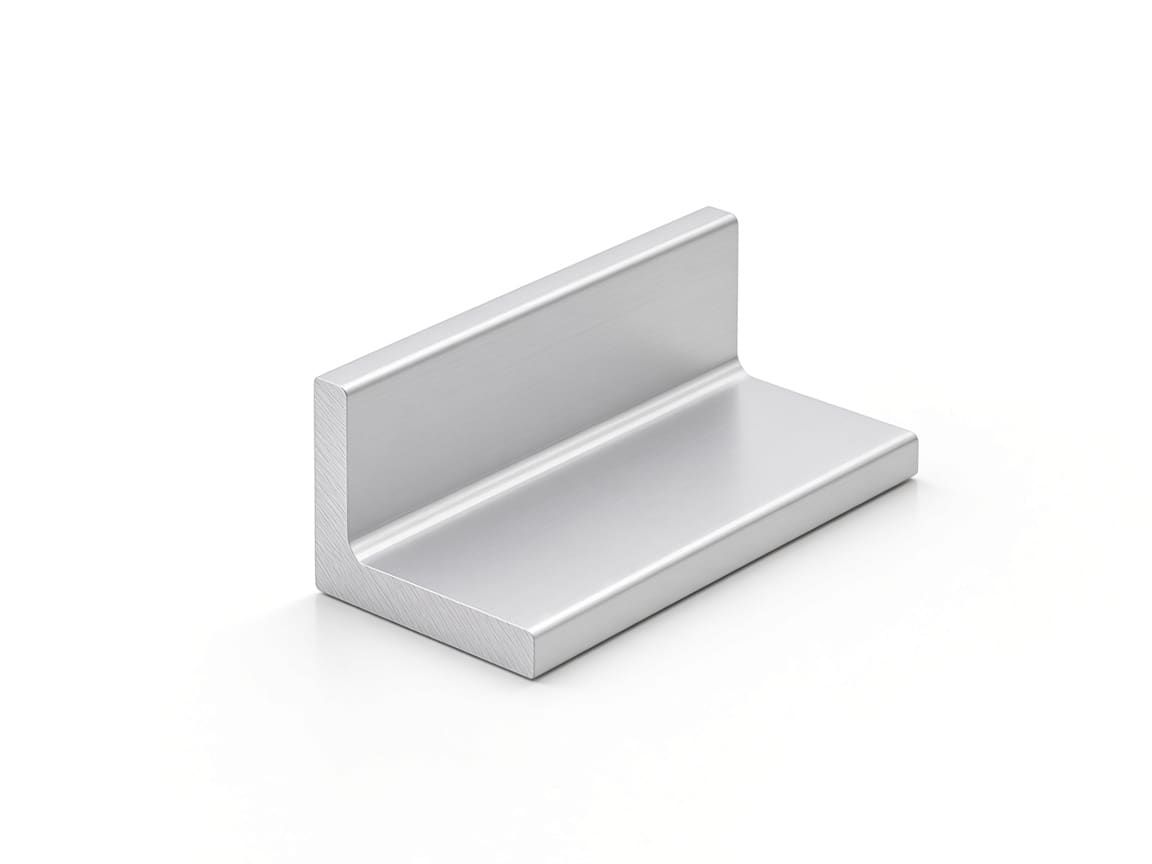

Aluminum Equal Angle 20 × 20 × 2 mm
- Size
- 20 × 20 × 2 mm
- Weight
- 0.206 kg/m
- Alloy
- 6063-T5

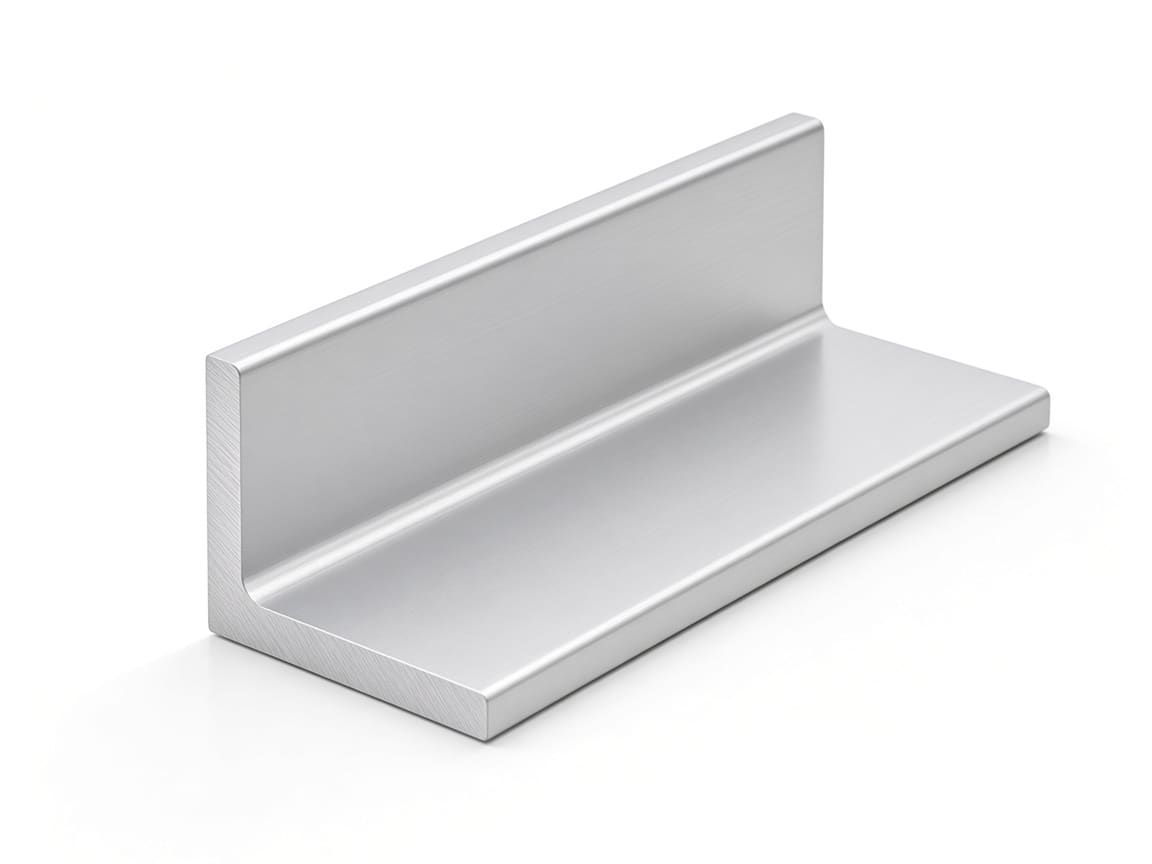

Aluminum Equal Angle 30 × 30 × 3 mm
- Size
- 30 × 30 × 3 mm
- Weight
- 0.463 kg/m
- Alloy
- 6063-T5
Aluminum Equal Angle 40 × 40 × 4 mm
- Size
- 40 × 40 × 4 mm
- Weight
- 0.823 kg/m
- Alloy
- 6063-T5

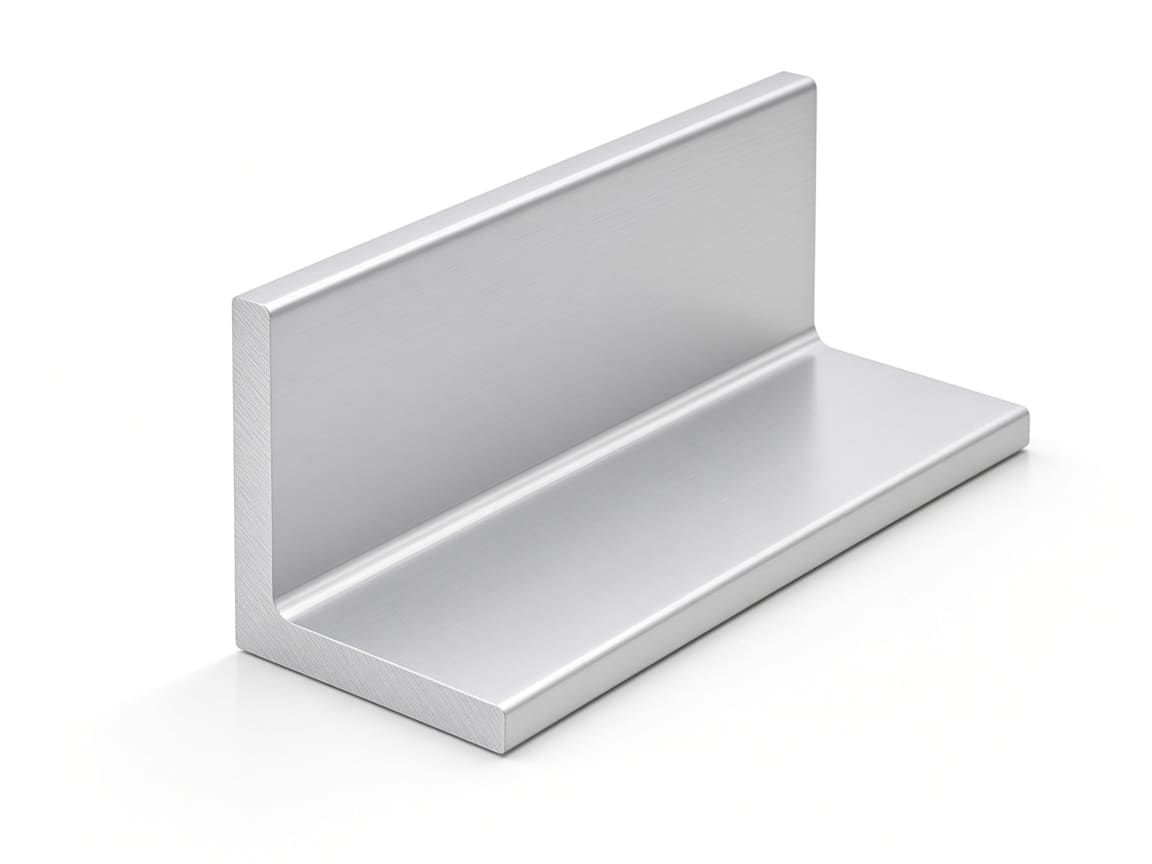

Aluminum Equal Angle 50 × 50 × 5 mm
- Size
- 50 × 50 × 5 mm
- Weight
- 1.286 kg/m
- Alloy
- 6063-T5

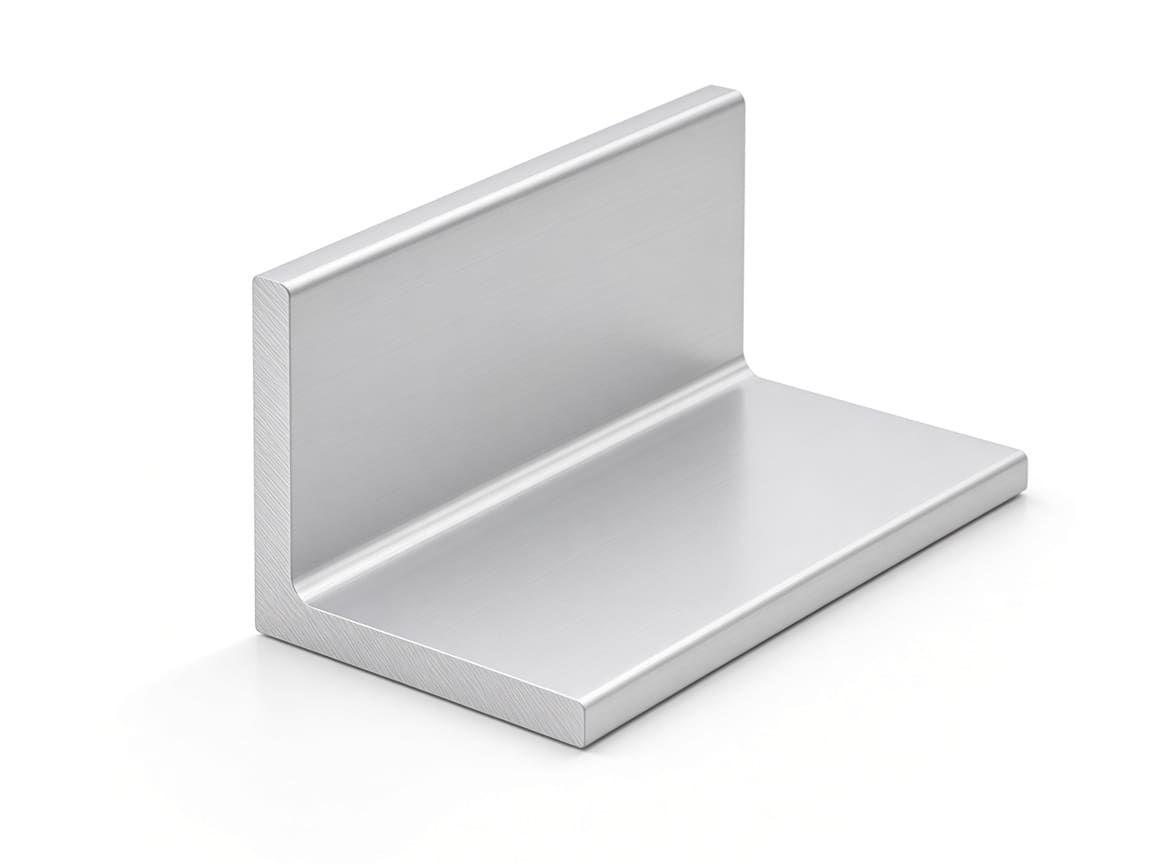

Aluminum Unequal Angle 40 × 20 × 3 mm
- Size
- 40 × 20 × 3 mm
- Weight
- 0.463 kg/m
- Alloy
- 6063-T5

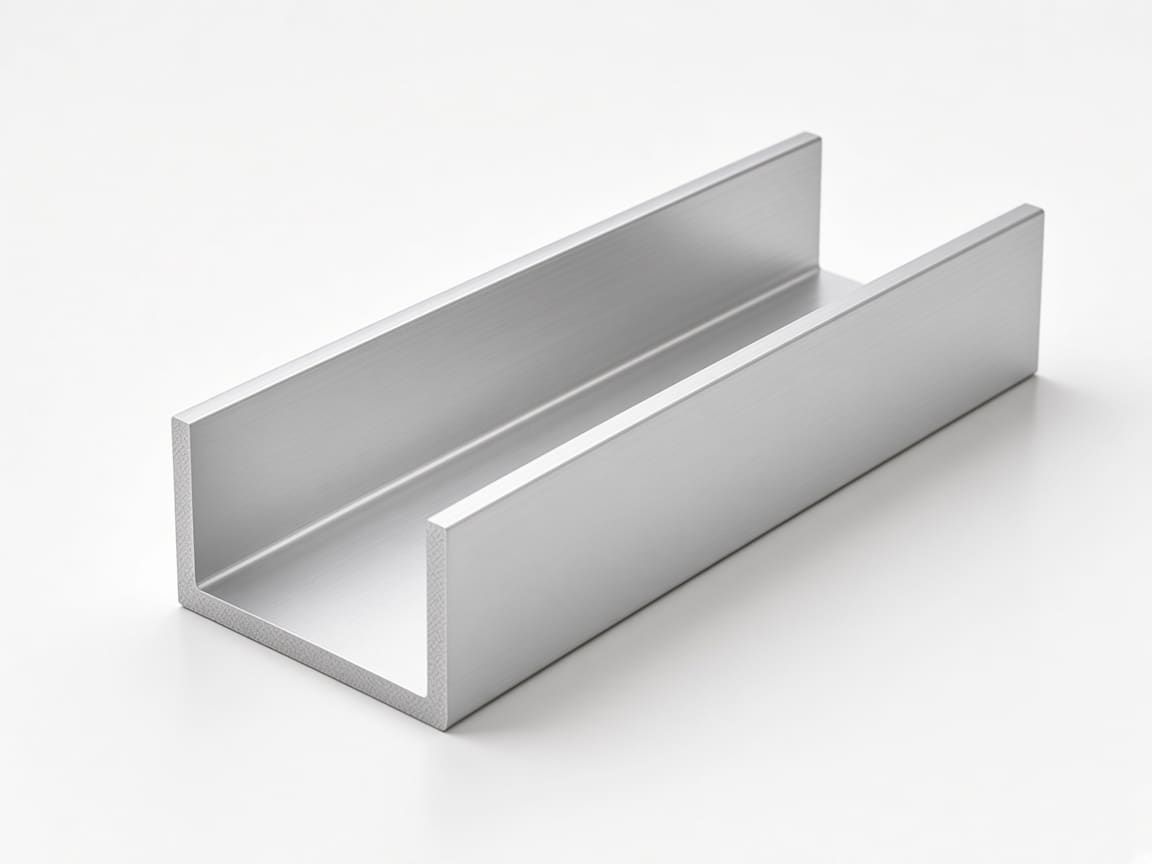

Aluminum U-Channel 20 × 20 × 2 mm
- Size
- 20 × 20 × 2 mm
- Weight
- 0.303 kg/m
- Alloy
- 6063-T5

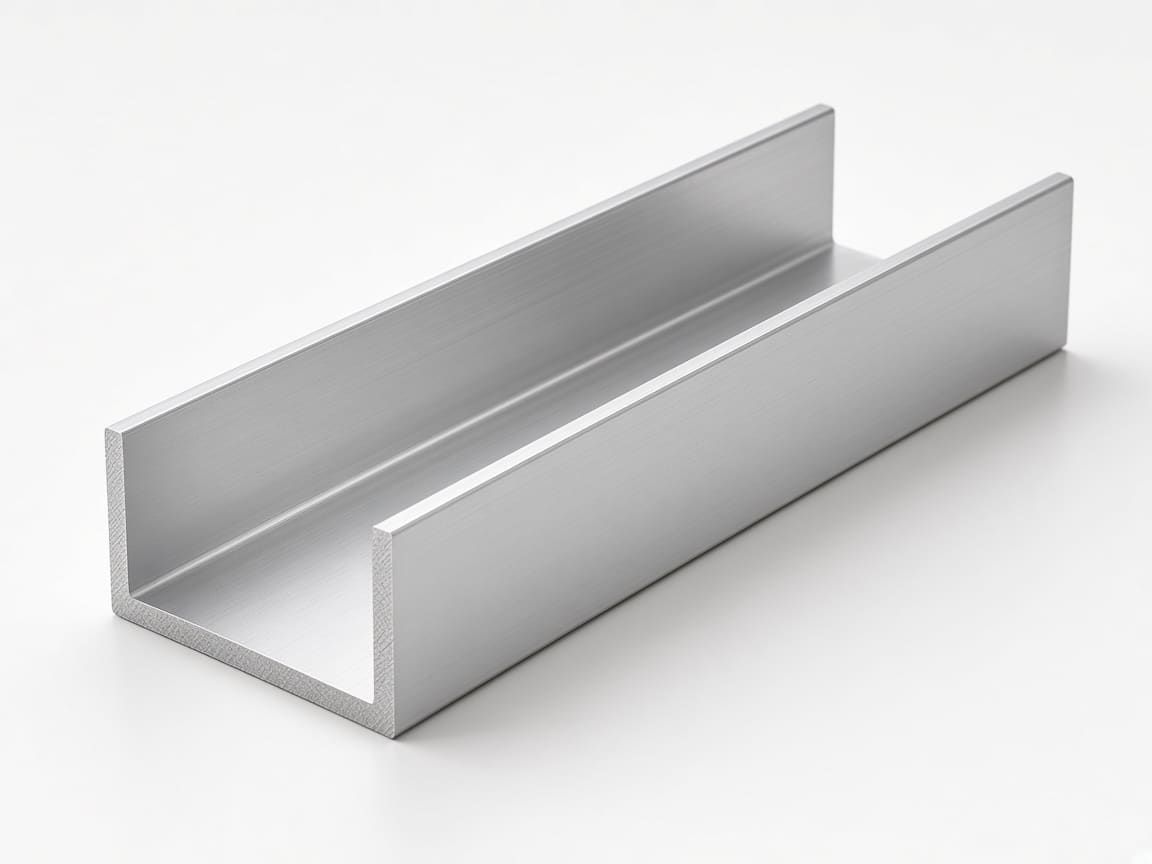

Aluminum U-Channel 40 × 20 × 2 mm
- Size
- 40 × 20 × 2 mm
- Weight
- 0.411 kg/m
- Alloy
- 6063-T5

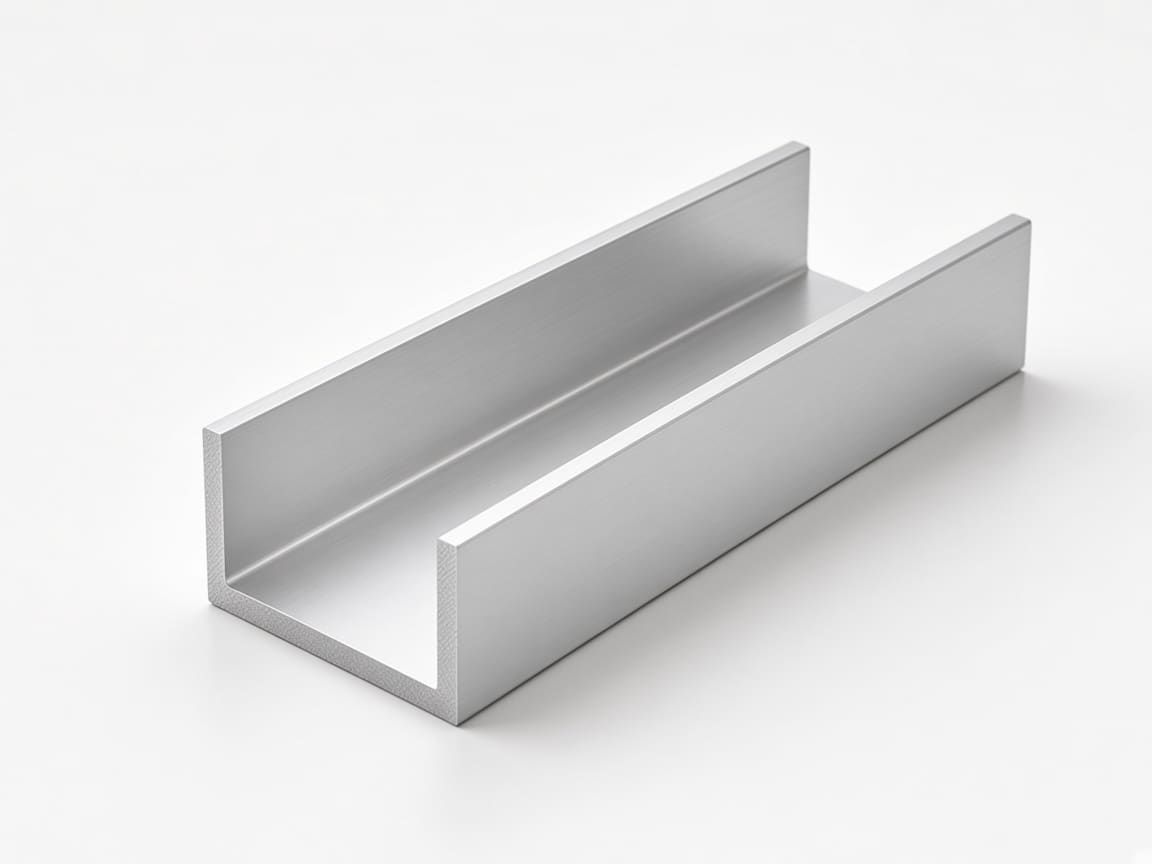

Aluminum U-Channel 50 × 25 × 3 mm
- Size
- 50 × 25 × 3 mm
- Weight
- 0.763 kg/m
- Alloy
- 6063-T5

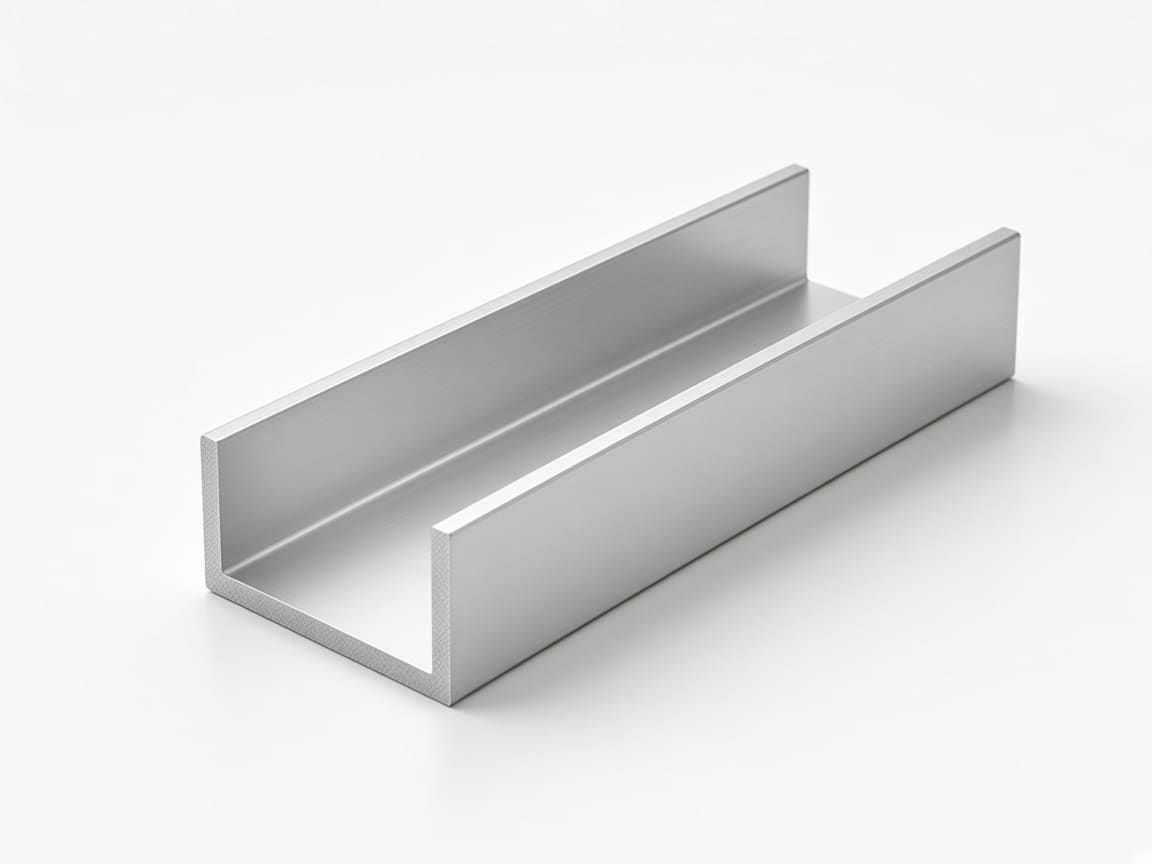

Aluminum U-Channel 60 × 30 × 3 mm
- Size
- 60 × 30 × 3 mm
- Weight
- 0.925 kg/m
- Alloy
- 6063-T5
Extruded Heat Sink 60 × 20 mm, 9 Fins
- Size
- 60 × 20 mm
- Weight
- 1.451 kg/m
- Alloy
- 6063-T5
Extruded Heat Sink 100 × 31 mm, 12 Fins
- Size
- 100 × 31 mm
- Weight
- 3.163 kg/m
- Alloy
- 6063-T5
Extruded Heat Sink 150 × 40 mm, 15 Fins
- Size
- 150 × 40 mm
- Weight
- 6.224 kg/m
- Alloy
- 6063-T5

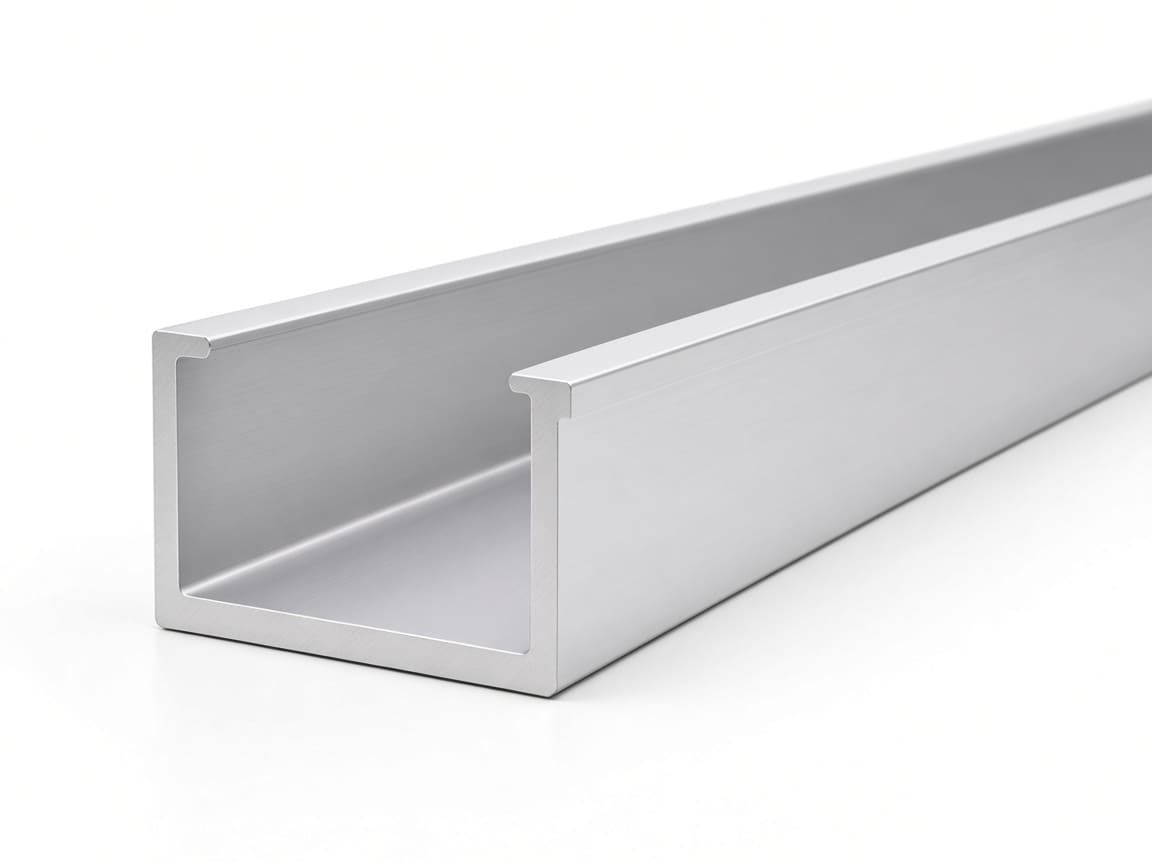

Surface-Mounted LED Profile 17 × 8 mm
- Size
- 17 × 8 mm
- Weight
- 0.118 kg/m
- Alloy
- 6063-T5
Recessed LED Profile 32 × 12 mm
- Size
- 32 × 12 mm
- Weight
- 0.230 kg/m
- Alloy
- 6063-T5

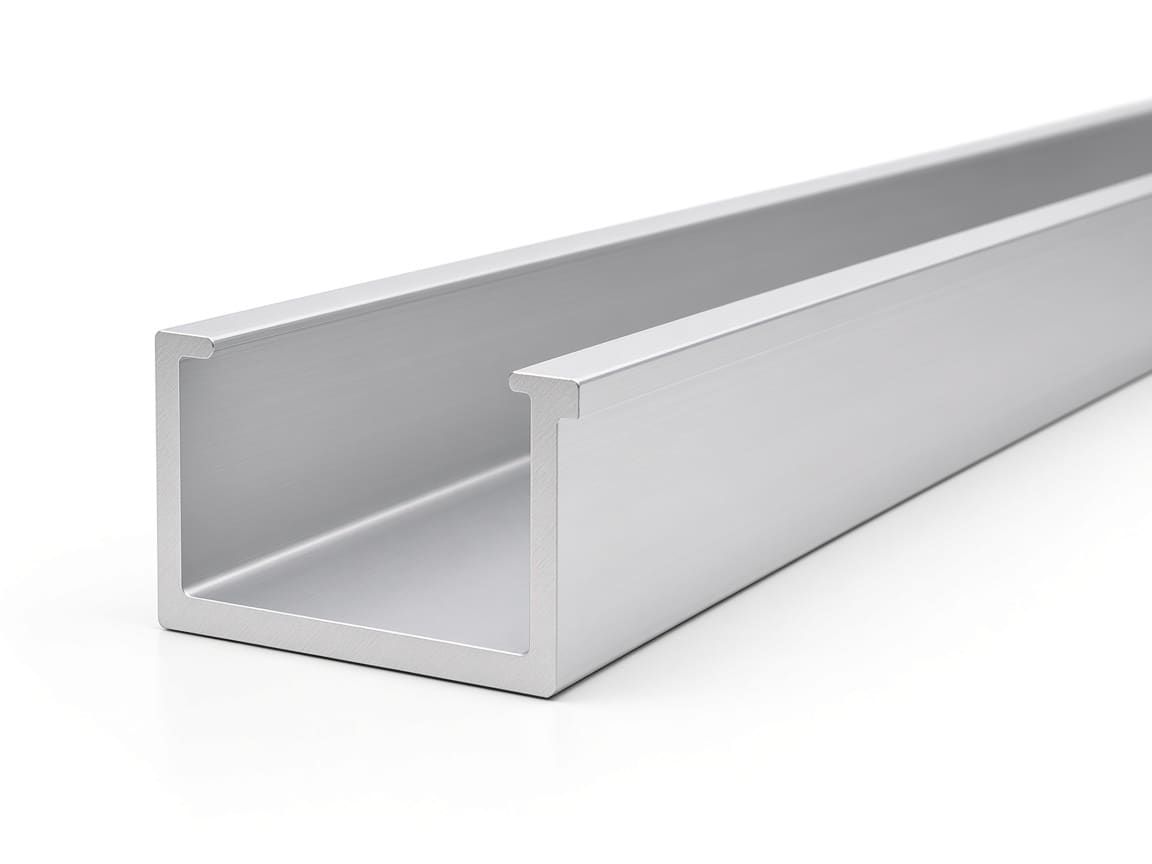

Deep Surface-Mounted LED Profile 30 × 20 mm
- Size
- 30 × 20 mm
- Weight
- 0.329 kg/m
- Alloy
- 6063-T5
No profiles match. Send us the size you need — we will check available dies or quote a custom one.
Families
Browse by family
T-Slot Profiles
6 sizes · 6063-T5
Size chart Square Tubes
5 sizes · 6063-T5 (6061-T6 on request)
Size chart Rectangular Tubes
5 sizes · 6063-T5 (6061-T6 on request)
Size chart Round Tubes
5 sizes · 6063-T5 (6061-T6 on request)
Size chart Angles
5 sizes · 6063-T5 (6061-T6 on request)
Size chart U-Channels
4 sizes · 6063-T5
Size chart
Heat Sink Profiles
3 sizes · 6063-T5
Size chart
LED Profiles
3 sizes · 6063-T5
Size chartFAQ
Profile library questions
What is a standard aluminum profile?
A section made on an existing die — such as a square tube, angle or T-slot profile — so you can order it without paying for tooling. Standard profiles are usually available in mill lengths or cut to your lengths.
How are weights in the library calculated?
From the cross-sectional area of the nominal section drawing multiplied by a density of 2.70 g/cm³, typical for 6000-series alloys. Actual weight varies slightly with dimensional tolerances.
Can I get CAD files for a profile?
Yes. Request the profile and we will send a DXF cross-section or a STEP model for your design work.
Can a standard profile be modified?
Machining, cutting, punching and finishing can adapt a standard profile without a new die. If the cross-section itself must change, we can make a custom die based on it.
Start a project
Need a size that isn't listed?
Send the dimensions you need. We will check our available dies, or quote a custom die — which for small profiles is usually a modest one-time cost.
- DFM review of your section before tooling
- Itemized quote: die, profile, fabrication, finish
- Engineering reply within one business day
